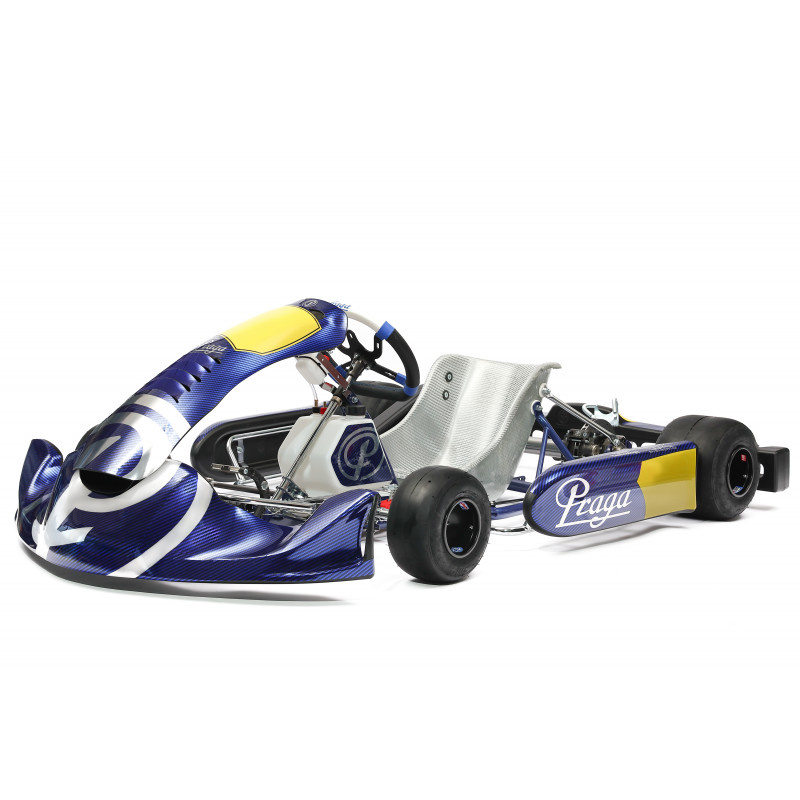

PRAGA Dragon EVO III Kart OK, OKJ, ROTAX, KF, X30, ROK

35.375,00 kr.
Inkl. moms

Perfekt til Rotax Junior og Senior, X30, KFJ og KF samt OKJ og OK

Leveres med sæde

Antal
Sidste elementer på lager

  Levering

Vi sender med GLS, Post Nord og DAO

  Ring til os

Vi tager imod bestilling på telefon

  Betaling

MP 23270905, bank Nordea 5655 7559480503

Chassis that makes the difference

Different solution for different categories
Satisfy the needs of every driver is our goal. So we have created different models for different categories.

Main features

Ø30×2 – Ø32×2 mm
Tubular frame

50 kg
Chassis weight

8.5 litre
Fuel tank

Ø50x2x1030 mm
Axle

Technical Specifications


frame
Ø30x2 - Ø32x2 mm tubular frame made of high - strenght 25CrMo4 steel
bodyworks
Model 507/8 top line model
brakes
hydraulic brake system, brake pump with oil recovery tank, floating iron cast brake disc
RBS: ventilated Ø187 mm rear brake disc
steering
top line steering system with Ø320 mm wheel
wheels
magnesium 5 inches, 130 mm (front) - 212 mm (rear) with beadlock screws
tank capacity
8.5 litres
seat
"racing", measure: 1, 1+, 2, 3, 4 (optional)
axle
Ø50x2x1030 mm
spindles
Ø25 mm with M10 screws


Dimension


wheelbase
ROTAX:
1050 mm
DD2:
1055 mm
KZ:
1045 mm
overall lenght
1940 mm
overall widht
1315 mm
overall height
545 mm
weight
RBS:
50 Kg
DD2:
54 Kg
KZ:
54 Kg
DRGXS3E-RBS
